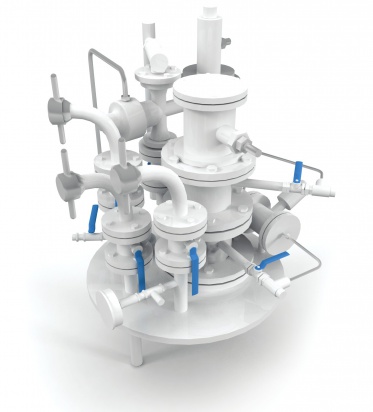

Reduction head with evaporator

Reduction head with evaporator
Call to order
The reduction head with evaporator is designed for re-gasification and LPG vapor phase reduction while using underground storages with a capacity of 5, 8, 10 and 20 m3 for residential, municipal and agricultural facilities gasification under conditions of seismic areas, mining, heaving and subsiding soils, as well as under normal geological conditions.

The reduction head can be applied in outdoor installations of V-1g class, where formation of explosion mixtures of IA class is possible, of T2 temperature class according to PUE 7.3 and GOST R 5130.13-99. Climatic performance for moderate climate U1 according to GOST 15150-69. External protection of cable heater input 1R54 according to GOST 14254-96.

Technical Specifications:

Medium Liquefied gas according to GOST 20448-90
Operation temperature, max., C from -40 to +45
Estimated temperature
+20
Operation pressure, MPa, n/e 1,0
Capacity, m3/h, max 72
Default voltage, V 220
Default heater capacity, kW
5
Default output pressure, KPa
3
Heater Ex marking
1dII2
Dimensions, mm, n/e, w/o housing
Length 0,85
Width 0,82
Height 2,97
Dimensions, m, n/e, with housing
Length 1,165
Width 1,165
Height 3,34
Head mass, kg, n/e:
With housing 435
w/o housing 359
Average lifetime, y, not less than 20
Productivity, m3/h

For propane
21
For butane
15,7
