Domestic cylinder dispenser D1E

Domestic cylinder dispenser D1E
Call to order

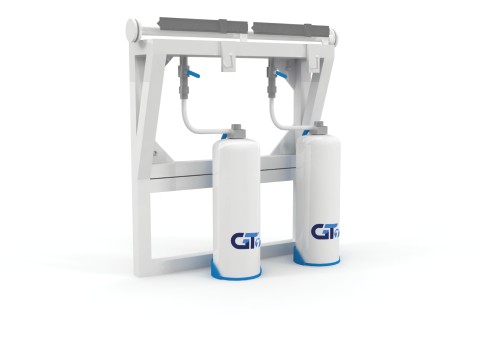

D1E dispenser is designed for filling domestic cylinders of 50 and 27 liters with LPG (propane, butane and mixtures) at specially equipped locations. Dispenser can be used both as a standalone installation and group assembly of several D1E units.

Technical Specifications:

Operation pressure, MPa, n/e 1,2 - 1,6
Operation temperature, not less, C
outdoors
indoors


10
-20

Cylinder filling time, min, n/e

50 l 5
27 l 3

Alarm tuning accuracy 0,1
Control voltage, V 220
Overall dimensions, mm 16708001773
Mass, kg, n/e 142
