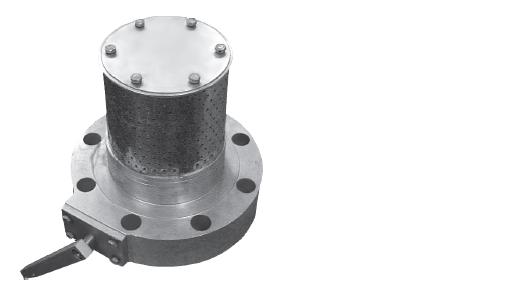

Bottom valve KD-80
Designed for installation on tank trucks and stationary storage reservoirs of LPG with the view to:
-automatic protection from emergency flow through filling and relief piping in case of the hose or fittings break;
-remote-controlled shut-off of the gas flow from a tank truck or stationary storage tank.
Technical Specifications:
-automatic protection from emergency flow through filling and relief piping in case of the hose or fittings break;
-remote-controlled shut-off of the gas flow from a tank truck or stationary storage tank.
Technical Specifications:
|
Nominal inside diameter DN, mm |
80 |
|
Nominal pressure Pn, Mpa (kg/cm2) |
1,6 (16)
|
|
Operational fluid temperature t, ˚C |
From -40 to +45 |
|
Operational fluid |
LPG (Propane, Butane) |
|
Outside temperature t, ˚C |
From -40 to +45 |
|
Valve drive |
Manual |
|
Closing pressure |
With closure flow and differential pressure of less than 1 kg/cm2 |
|
Leakage through the seal, cm3/min |
0 |
|
Overall dimensions, mm |
212x282x220 |
|
Weight, kg |
8,6 |
