Technological system NGZS-04 1x18, NSV 32 (GT7 production)

Technological system NGZS-04 1x18, NSV 32 (GT7 production)
Call to order

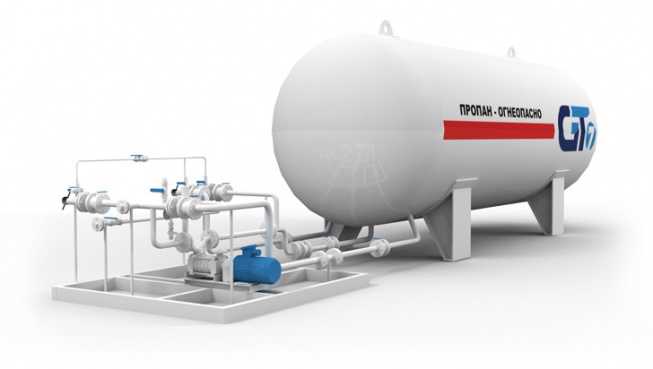

Technological system of above-ground gas station TS "NGZS-04" consists of a fuel storage vessel, pumping unit, dispenser and is designed for refueling vehicles (cars and trucks)with liquefied petroleum gases (LPG) according to GOST 27578-87 and GOST 20448 - 90. Technology system is equipped with all necessary tools to carry out the technological operations of receiving, storage and refueling vehicles, as well as safe for routine maintenance.


Technical Specifications
:


00000000-010000-020000-030000-040000-05
Operation pressure, MPa1,6
Operation temperature, °from - 40 to + 45
Maximum pressure in the pipelines for vehicle fueling, MPa1,58
Single fill volume, litres (average)140
Total fueling time, min, n/e6
Vessel diameter, m1,62
Distance between pumping block and dispenser, m, not less than30
Vessel capacityGeometric, m312,517,515,310,18,16,1
Dischargeable capacity (K=0,85), m310,614,9138,66,95,2
