Technological system KPM GT PO ob 2x10, NSV 32 (GT7 production), Corken Z-2000, connected to Fuel Dispenser

Technological system KPM GT PO ob 2x10, NSV 32 (GT7 production), Corken Z-2000, connected to Fuel Dispenser
Call to order
TS "KPM GT PO” is a technological system of automobile gas fuel station with single-shell underground tanks.

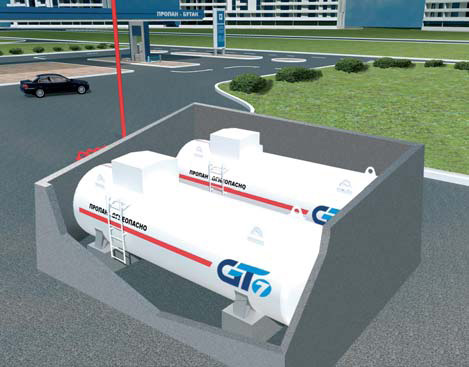

TS "KPM GT PO ob" tanks are located above ground - in a ferroconcrete monolithic waterproof box or in a steel waterproof box with a sand backfueling of interwall space, providing the required level of fire safety, in accordance with 01.20 of NPB 111-98, which equates them to the underground double-walled tanks.

LPG from the tank is delivered through a bottom discharge outlet, which is equipped with controlled bottom valve.
LPG from the tank is delivered through a double-walled pipe socket of bottom discharge controlling the socket pipe interwall space tightness.

Technical Specifications:

Geometrical capacity of storage tank, m³ 10
11,75
20
23,5
Dischargeable capacity (at =0,85), m³ 17
20
34
40
Gas weight (for butane), kg 9760
11468
19520
22936
Operation pressure, MPa, n/e 1,6
Estimated pressure, MPa, n/e 1,8
Test pressure, MPa, n/e 2,34
Operation temperature, ° from - 40 to + 45
Maximum pressure in the pipelines for refueling vehicles, MPa 1,58
Weight (w/o dispensers), kg 7240
7980
10880
12180
Overall dimensions, m
(w/o dispensers) n/e:
length width height
(for waste pipe)


105,76


105,76


11,65,76,4


125,76,4
Nominal capacity, kW 6,5
