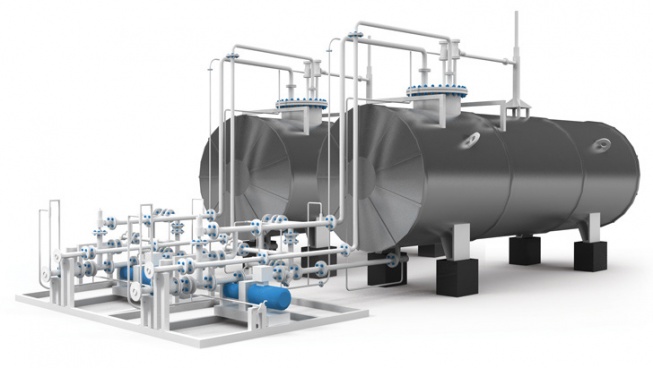

Technological system KPM GT NO 2x10, NSV 32, connected to Fuel Dispenser

Technological system KPM GT NO 2x10, NSV 32, connected to Fuel Dispenser
Call to order
TS "KPM GT NO” is a technological system of automobile gas fuel station with single-shell above-ground tanks.

Tanks of the "KPM GT NO" TS are located above ground - with thermal insulation of noncombustible materials with a protective steel casing, providing the required level of fire safety in accordance with 20.1 of NPB 111-98, that equates them with double-walled underground storage tanks.

LPG from the tank is delivered through a bottom discharge outlet, which is equipped with controlled bottom valve.

Technical Specifications:

Geometrical capacity of storage tank, m³ 10
11,75
20
23,5
Dischargeable capacity (at =0,85), m³ 17
20
34
40
Gas weight (for butane), kg 9760 11468 19520 22936
Operation pressure, MPa, n/e 1,6
Estimated pressure, MPa, n/e 1,8
Test pressure, MPa, n/e2,34
Operation temperature, ° from - 40 to + 45
Maximum pressure in the pipelines for refueling vehicles, MPa 1,58
Weight (w/o dispensers), kg 7500
8150
11500
12800
Overall dimensions, m (w/o dispensers) n/e: length width height (for waste pipe) 8,45,16 9,25,16 9,75,36,4 10,85,36,4
Nominal capacity, kW6,5
