Technological system KPM GT NO 1x10, NSV-32, Corken Z-2000, connected to Fuel Dispenser

Technological system KPM GT NO 1x10, NSV-32, Corken Z-2000, connected to Fuel Dispenser
Call to order

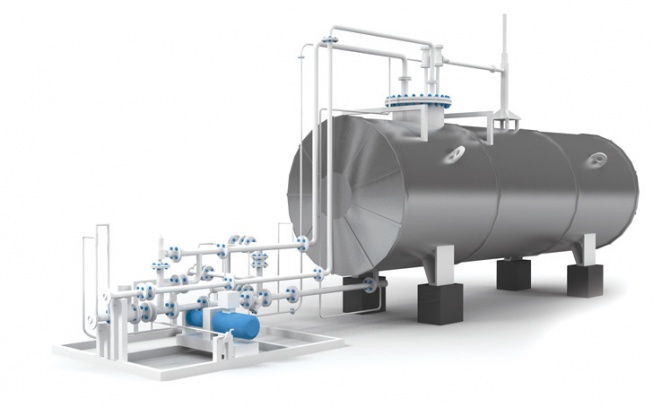

TS "KPM GT NO” is a technological system of automobile gas fuel station with single-shell above-ground tanks.

Tanks of the "KPM GT NO" TS are located above ground - with thermal insulation of noncombustible materials with a protective steel casing, providing the required level of fire safety in accordance with 20.1 of NPB 111-98, that equates them with double-walled underground storage tanks.

LPG from the tank is delivered through a bottom discharge outlet, which is equipped with controlled bottom valve.

Technical Specifications:

Geometrical capacity of storage tank, m³ 10 11,7520
23,5
Dischargeable capacity (at =0,85), m³ 8,5 10 17
20
Gas weight (for butane), kg 4880 5734 9760 11468
Operation pressure, MPa, n/e 1,6
Estimated pressure, MPa, n/e 1,8
Test pressure, MPa, n/e2,34
Operation temperature, ° from - 40 to + 45
Maximum pressure in the pipelines for refueling vehicles, MPa 1,58
Weight (w/o dispensers), kg 40004400 6000 6600
Overall dimensions, m (w/o dispensers) n/e: length width height (for waste pipe) 8,42,56 9,22,56 9,72,56,4 10,82,56,4
Nominal capacity, kW6,5
