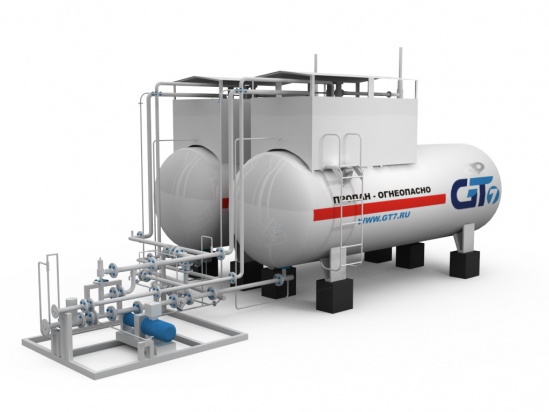

TS "KPM GT ND" is a technological system of automobile gas fuel station with double- wall above-ground tanks.

TS "KPM GT ND" double-walled tanks are located above ground. Above-ground tank with strapping has a special heat insulation system that ensures protection of the equipment for at least 80 minutes of fire exposure. The interwall space is filled with nitrogen at a pressure not less than 0,03 MPa (0,3 kgf / cm ²) and is managed by control systems with signal transmission to the operator's control panel.

Technical Specifications:

Geometrical capacity of storage tank, m³ 10
11,75
20
23,5
Dischargeable capacity (at =0,85), m³ 17
20
34
40
Gas weight (for butane), kg 9760
11468
19520
22936
Geometrical capacity of casing of storage tank, m³
2,5
3,0
4,2
4,8
Operation pressure, MPa, n/e 1,6
Operation pressure, of casing, MPa, n/e
0,1
Estimated pressure, MPa, n/e 1,8
Test pressure, MPa, n/e 2,34
Operation temperature, ° from - 40 to + 45
Maximum pressure in the pipelines for refueling vehicles, MPa 1,58
Weight (w/o dispensers), kg 14300
16720
22480
25270
Overall dimensions, m
(w/o dispensers) n/e:
length width height
(for waste pipe)


8,45,16


9,25,16


9,75,36,4


10,85,36,4
Nominal capacity, kW 6,5
