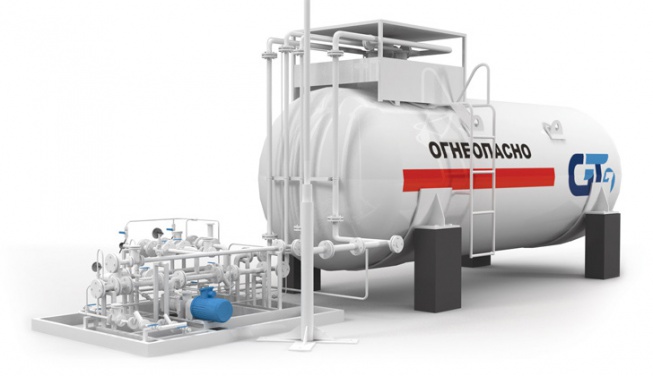

TS "KPM GT ND" is a technological system of automobile gas fuel station with double- wall above-ground tanks.

TS "KPM GT ND" double-walled tanks are located above ground. Above-ground tank with strapping has a special heat insulation system that ensures protection of the equipment for at least 80 minutes of fire exposure. The interwall space is filled with nitrogen at a pressure not less than 0,03 MPa (0,3 kgf / cm ²) and is managed by control systems with signal transmission to the operator's control panel.


Technical Specifications:


Geometrical capacity of storage tank, m³ 10
11,7520
23,5
Dischargeable capacity (at =0,85), m³ 8,5
10
17
20
Gas weight (for butane), kg 4880 5734
9760
11468
Geometrical capacity of casing of storage tank, m³
2,5
3,0
4,2
4,8
Operation pressure, MPa, n/e 1,6
Operation pressure, of casing, MPa, n/e
0,1
Estimated pressure, MPa, n/e 1,8
Test pressure, MPa, n/e 2,34
Operation temperature, ° from - 40 to + 45
Maximum pressure in the pipelines for refueling vehicles, MPa
1,58
Weight (w/o dispensers), kg 8100 9310
12200
13590
Overall dimensions, m
(w/o dispensers) n/e:
length width height
(for waste pipe)

8,42,56


9,22,56


9,72,56,4


10,82,56,4
Nominal capacity, kW 6,5
