Technological system KPM GT PD 2x10, NSV 32 (GT7 production), connected to Fuel Dispenser

Technological system KPM GT PD 2x10, NSV 32 (GT7 production), connected to Fuel Dispenser
Call to order

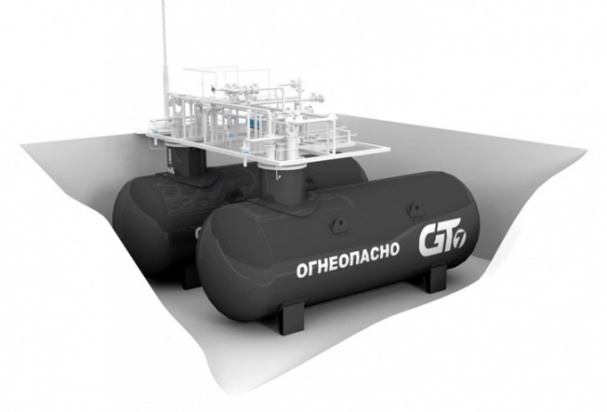

TS "KPM GT PD" is a technological system of automobile gas fuel station with double-wall underground tanks.

Double-walled "KPM GT PD" tanks are located under ground.

The interwall space is filled with nitrogen at a pressure not less than 0,03 MPa (0,3 kgf / cm ²) and is managed by control systems with signal transmission to the operator's control panel.

Technical Specifications:

Geometrical capacity of storage tank, m³ 10
11,75
20
23,5
Dischargeable capacity (at =0,85), m³ 8,5
10
17
20
Gas weight (for butane), kg 9760
11468
19520
22936
Geometrical capacity of casing of storage tank, m³
2,5
3,0
4,2
4,8
Operation pressure, MPa, n/e 1,6
Operation pressure, of casing, MPa, n/e
0,1
Estimated pressure, MPa, n/e 1,8
Test pressure, MPa, n/e 2,34
Operation temperature, ° from - 40 to + 45
Maximum pressure in the pipelines for refueling vehicles, MPa 1,58
Weight (w/o dispensers), kg 14000
16420
22180
24970
Overall dimensions, m
(w/o dispensers) n/e:
length width height
(for waste pipe)


8,45,16


9,25,16


9,75,36,4


10,85,36,4
Nominal capacity, kW 6,5
