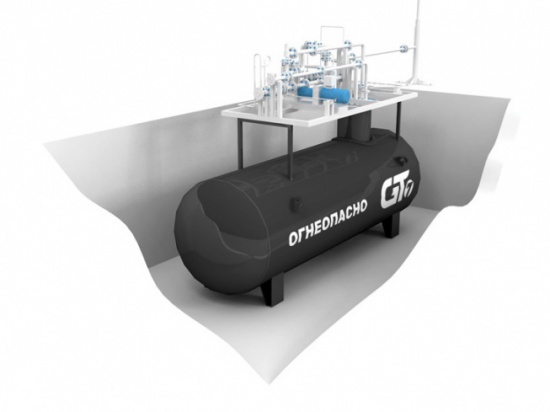

TS "KPM GT PD" is a technological system of automobile gas fuel station with double-wall underground tanks.

Double-walled "KPM GT PD" tanks are located under ground.

The interwall space is filled with nitrogen at a pressure not less than 0,03 MPa (0,3 kgf / cm ²) and is managed by control systems with signal transmission to the operator's control panel.

Technical Specifications:

Geometrical capacity of storage tank, m³ 10 20
11,7520
23,5
Dischargeable capacity (at =0,85), m³ 8,5
10
17
20
Gas weight (for butane), kg 4880 5734
9760
11468
Geometrical capacity of casing of storage tank, m³
2,5
3,0
4,2
4,8
Operation pressure, MPa, n/e 1,6
Operation pressure, of casing, MPa, n/e
0,1
Estimated pressure, MPa, n/e 1,8
Test pressure, MPa, n/e 2,34
Operation temperature, ° from - 40 to + 45
Maximum pressure in the pipelines for refueling vehicles, MPa
1,58
Weight (w/o dispensers), kg 7680 8890
11770
13170
Overall dimensions, m
(w/o dispensers) n/e:
length width height
(for waste pipe)

8,42,56


9,22,56


9,72,56,4


10,82,56,4
Nominal capacity, kW 6,5
