Technological system KPM GT PO ob 2x10, NSV 32 (GT7 production), connected to Fuel Dispenser

Technological system KPM GT PO ob 2x10, NSV 32 (GT7 production), connected to Fuel Dispenser
Call to order
TS "KPM GT PO” is a technological system of automobile gas fuel station with single-shell underground tanks.

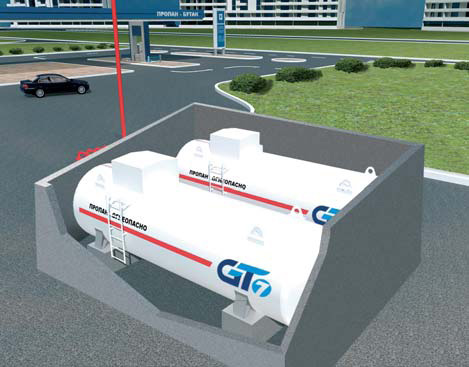

TS "KPM GT PO ob" tanks are located above ground - in a ferroconcrete monolithic waterproof box or in a steel waterproof box with a sand backfueling of interwall space, providing the required level of fire safety, in accordance with 01.20 of NPB 111-98, which equates them to the underground double-walled tanks.

LPG from the tank is delivered through a bottom discharge outlet, which is equipped with controlled bottom valve.
LPG from the tank is delivered through a double-walled pipe socket of bottom discharge controlling the socket pipe interwall space tightness.

Technical Specifications:

Geometrical capacity of storage tank, m³ 10
11,75
20
23,5
Dischargeable capacity (at =0,85), m³ 17
20
34
40
Gas weight (for butane), kg 9760
11468
19520
22936
Operation pressure, MPa, n/e 1,6
Estimated pressure, MPa, n/e 1,8
Test pressure, MPa, n/e 2,34
Operation temperature, ° from - 40 to + 45
Maximum pressure in the pipelines for refueling vehicles, MPa 1,58
Weight (w/o dispensers), kg 7240
7980
10880
12180
Overall dimensions, m
(w/o dispensers) n/e:
length width height
(for waste pipe)


105,76


105,76


11,65,76,4


125,76,4
Nominal capacity, kW 6,5
