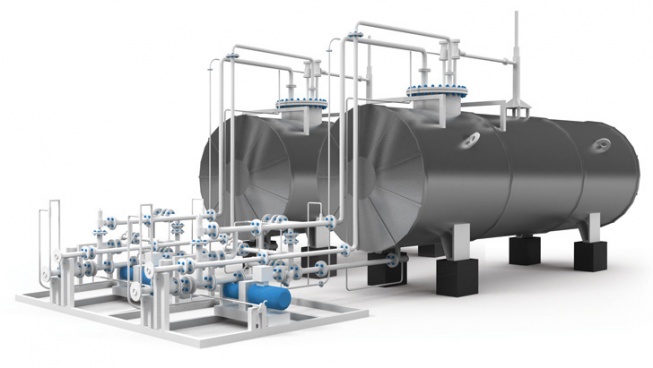

Technological system KPM GT NO 2x10, 2xNSV 32 (GT7 production), connected to 2 Fuel Dispensers

Technological system KPM GT NO 2x10, 2xNSV 32 (GT7 production), connected to 2 Fuel Dispensers
Call to order
TS "KPM GT NO” is a technological system of automobile gas fuel station with single-shell above-ground tanks.

Tanks of the "KPM GT NO" TS are located above ground - with thermal insulation of noncombustible materials with a protective steel casing, providing the required level of fire safety in accordance with 20.1 of NPB 111-98, that equates them with double-walled underground storage tanks.

LPG from the tank is delivered through a bottom discharge outlet, which is equipped with controlled bottom valve.

Technical Specifications:

Geometrical capacity of storage tank, m³ 10
11,75
20
23,5
Dischargeable capacity (at =0,85), m³ 17
20
34
40
Gas weight (for butane), kg 9760 11468 19520 22936
Operation pressure, MPa, n/e 1,6
Estimated pressure, MPa, n/e 1,8
Test pressure, MPa, n/e2,34
Operation temperature, ° from - 40 to + 45
Maximum pressure in the pipelines for refueling vehicles, MPa 1,58
Weight (w/o dispensers), kg 7500
8150
11500
12800
Overall dimensions, m (w/o dispensers) n/e: length width height (for waste pipe) 8,45,16 9,25,16 9,75,36,4 10,85,36,4
Nominal capacity, kW6,5
