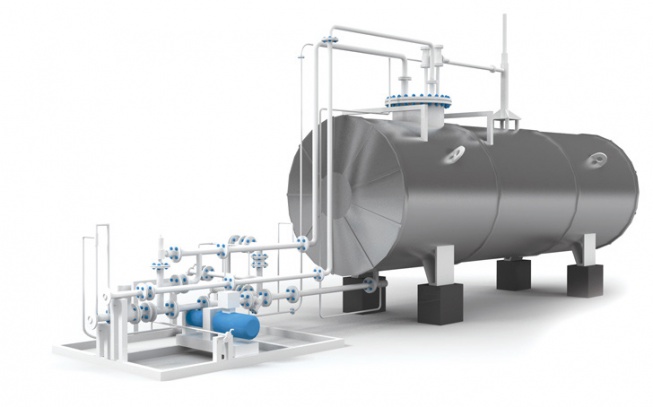

Technological system KPM GT NO 1x10, NSV 32 (GT7 production), connected to Fuel Dispenser

Technological system KPM GT NO 1x10, NSV 32 (GT7 production), connected to Fuel Dispenser
Call to order
TS "KPM GT NO” is a technological system of automobile gas fuel station with single-shell above-ground tanks.

Tanks of the "KPM GT NO" TS are located above ground - with thermal insulation of noncombustible materials with a protective steel casing, providing the required level of fire safety in accordance with 20.1 of NPB 111-98, that equates them with double-walled underground storage tanks.

LPG from the tank is delivered through a bottom discharge outlet, which is equipped with controlled bottom valve.

Technical Specifications:

Geometrical capacity of storage tank, m³ 10 11,7520
23,5
Dischargeable capacity (at =0,85), m³ 8,5 10 17
20
Gas weight (for butane), kg 4880 5734 9760 11468
Operation pressure, MPa, n/e 1,6
Estimated pressure, MPa, n/e 1,8
Test pressure, MPa, n/e2,34
Operation temperature, ° from - 40 to + 45
Maximum pressure in the pipelines for refueling vehicles, MPa 1,58
Weight (w/o dispensers), kg 40004400 6000 6600
Overall dimensions, m (w/o dispensers) n/e: length width height (for waste pipe) 8,42,56 9,22,56 9,72,56,4 10,82,56,4
Nominal capacity, kW6,5
