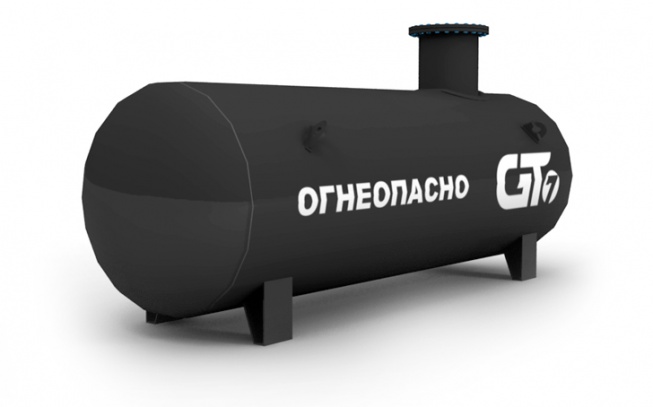

Underground tank V = 23,5m3 single-vehicle KPM GT PO

Underground tank V = 23,5m3 single-vehicle KPM GT PO
Call to order
Tanks are designed for storage, re-gasification of LPG in accordance with GOST 20448-90 while residential, municipal and agricultural facilities gasification. Tanks with different types of evaporators can be supplied.


Technical Specifications:

Geometrical vessel capacity, m³ 23,5
Dischargeable capacity (K=0,85), m³ 8,5
Gas weight (for butane), kg 11468
Operation pressure, MPa, n/e 1,6
Estimated pressure, MPa, n/e 1,8
Test pressure, Mpa, n/e 2,34
Operation temperature, C, n/e from -40 to +45
