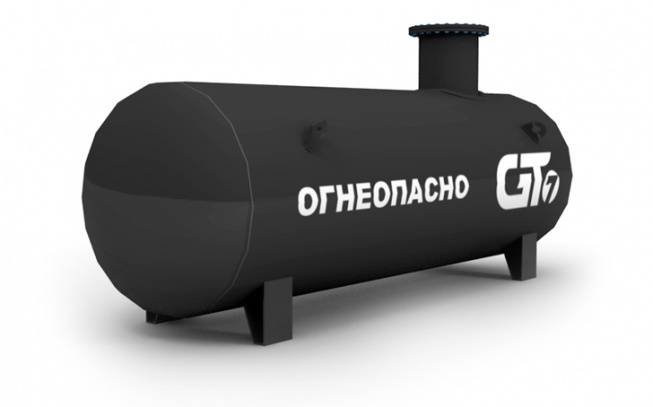

Underground tank V = 11,75m3 single-vehicle KPM GT PO

Underground tank V = 11,75m3 single-vehicle KPM GT PO
Call to order
Tanks are designed for storage, re-gasification of LPG in accordance with GOST 20448-90 while residential, municipal and agricultural facilities gasification. Tanks with different types of evaporators can be supplied.


Technical Specifications:

Geometrical vessel capacity, m³ 11,75
Dischargeable capacity (K=0,85), m³ 10
Gas weight (for butane), kg 5734
Operation pressure, MPa, n/e 1,6
Estimated pressure, MPa, n/e 1,8
Test pressure, Mpa, n/e 2,34
Operation temperature, C, n/e from -40 to +45
