RPG-20

RPG-20
Call to order

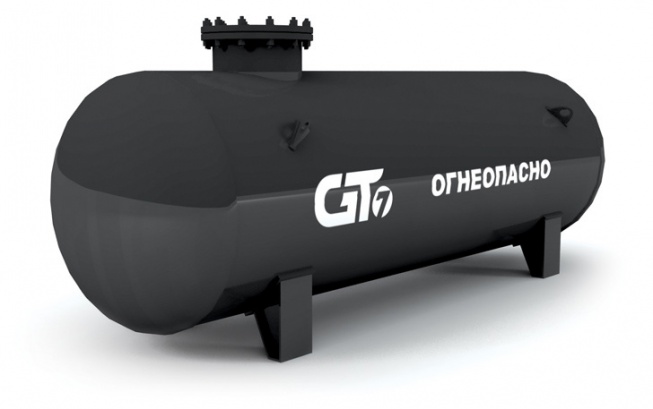

Tank of 20 cubic meters capacity is intended for storage of Liquefied Petrol Gases (re-filling tank for LPG filling stations).


Technical specifications:

Operational pressure, MPa, no greater than 1,6
Test pressure, MPa, no greater than 2,34
Operational temperature, ˚C -40 +45
Geometrical capacity of the tank, m3 20
Dischargeable capacity, m3 17
LPG weight, kg 9760
Tank weight, kg 4750
Overall dimensions:
length 6,7
width 2,02
height 3,5
