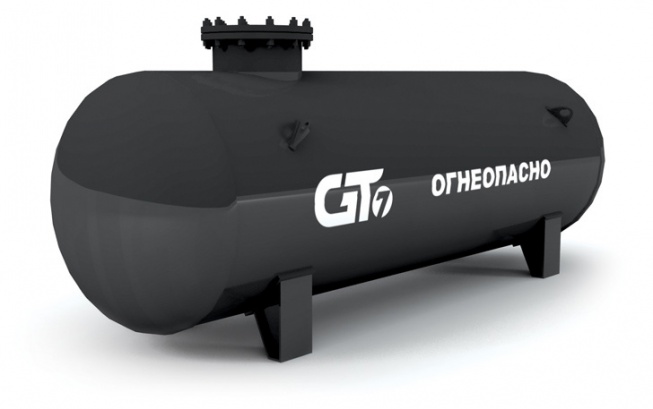

RPG-5
Tanks are designed for storage, re-gasification of LPG in accordance with GOST 20448-90 while residential, municipal and agricultural facilities gasification. Tanks with different types of evaporators can be supplied.
Technical Specifications:
| Operation pressure, MPa, n/e | 1,6 |
| Test pressure, Mpa, n/e | 2,34 |
| Operation temperature, C, n/e | îò -40 äî +45 |
| Geometrical vessel capacity, m3 | 5 |
| Dischargeable capacity (K=0,85), m3 | 4,25 |
| LPG mass, kg | 2440 |
| Tank mass, kg | 1367 |
| Overall Dimensions, m: |
|
| Length | 4,62 |
| Width | 1,2 |
| Height | 2,1 |
