RNG-50

RNG-50
Call to order

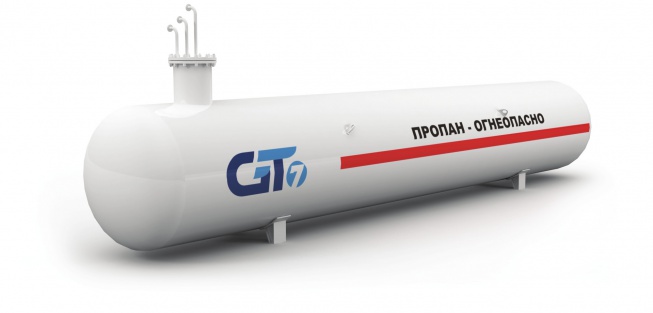

Tank of 50 cubic meters capacity is intended for storage of Liquefied Petrol Gases (re-filling tank for LPG filling stations).


Technical specifications:

Operational pressure, MPa, no greater than 1,6
Test pressure, MPa, no greater than 2,34
Operational temperature, ˚C -40 +45
Geometrical capacity of the tank, m3 50
Dischargeable capacity, m3 42,5
LPG weight, kg 24 400
Tank group I
Overall dimensions:
length 13544
width 2200
height 2984
