RNG-5

RNG-5
Call to order

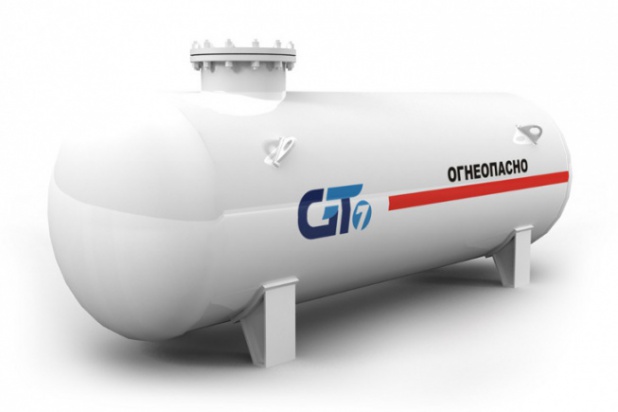

Tanks are designed for storage, re-gasification of LPG in accordance with GOST 20448-90 while residential, municipal and agricultural facilities gasification. Tanks with different types of evaporators can be supplied.

Technical Specifications:

Operation pressure, MPa, n/e 1,6
Test pressure, Mpa, n/e 2,34
Operation temperature, C, n/e -40 +45
Geometrical vessel capacity, m3 5
Dischargeable capacity (K=0,85), m3 4,25
LPG mass, kg 2440
Tank mass, kg 1315
Overall Dimensions, m:
Length 4,62
Width 1,2
Height 1,4
