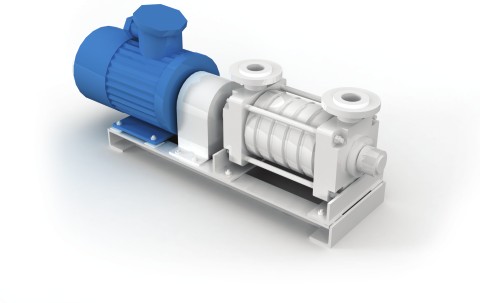

Pumping unit NSVG
Self-priming vortex gas pump (NSVG) is designed for pumping:
-Liquefied petroleum gas (propane - butane and their mixtures) from stationary and mobile vessels into the above-ground (underground) storage tanks and fueling automotive (domestic) cylinders;
-Liquids, non-corrosive with respect to the pump material (density n/e 1050 kg/m3).
The unit NSVG can be manufactured with a vertical or horizontal suction and discharge housings.
-Liquefied petroleum gas (propane - butane and their mixtures) from stationary and mobile vessels into the above-ground (underground) storage tanks and fueling automotive (domestic) cylinders;
-Liquids, non-corrosive with respect to the pump material (density n/e 1050 kg/m3).
The unit NSVG can be manufactured with a vertical or horizontal suction and discharge housings.
Technical Specifications:
| Medium | LPG
|
| Operation pressure, MPa, n/e | 1,6
|
| Operation temperature, C | from 40 to + 45 |
| Pump head, l/min | from 20 to 85 |
| Pump type | Vortex, five-step |
| Nozzles nominal bore | 40 |
| Motor power | 7,5 |
| Motor performance | explosion-proof |
| Explosion protection | IExdIIBT4 |
| Motor shaft rotational speed | 1450 |
| AC Voltage, V | 380 |
| Dimensions, mm | 1040õ300õ470 |
| Unit mass, kg, n/e | 173 |
