ACT-8

ACT-8
Call to order

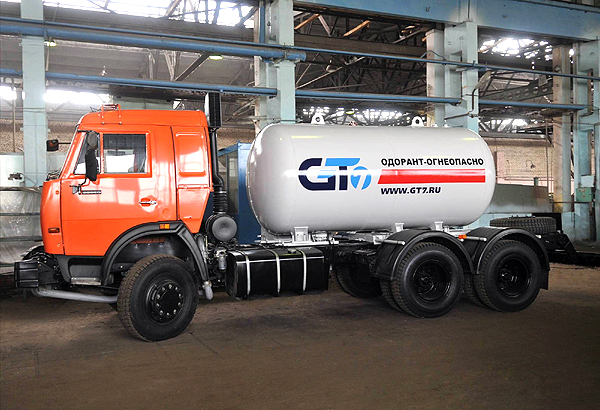

Tanker truck ACT-8 is designed for carrying, short-time storage and refilling of stationary tanks with odorant SPM TU 51-81-88, TU 51-313323949-94-2002, operational under moderate climate conditions at temperature range from -40̊ C to +45̊ C.

Use of imported chassis also possible, provided it meets necessary technical requirements and properly prepared to carry hazardous cargoes.

Technical Specifications:

Operating fluid
Odorant MTA (a mixture of natural mercaptans), GOST 19433-88 or odorant SPM TU 51-81-88, TU 51-31323949-66-0
Geometrical capacity, m³ 7,67
Dischargeable capacity (85%), m³ 6,52
Weight of transported LPG, kg
5477
Effective pressure, MPa
1,6
Test pressure, MPa
1,8
Operation temperature, ̊ C от - 40...+ 45
Specified chassis KAMAZ-43118
Gross weight, kg 11323
Total weight, kg16995
Gross weight distribution on axles, kg:
front axle
fear axle (platform)


4942
12053
Overall dimensions, m, no greater than 8523 х 2500 х 3687
