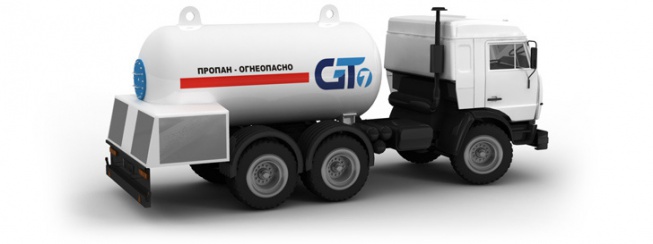

ACT-6
Tanker trucks ACT-5/6/10 are designed for carrying, short-time storage and refilling of stationary tanks with odorant SPM TU 51-81-88, TU 51-313323949-94-2002, operational under moderate climate conditions at temperature range from -40̊ C to +45̊ C.
Use of imported chassis also possible, provided it meets necessary technical requirements and properly prepared to carry hazardous cargoes.
Use of imported chassis also possible, provided it meets necessary technical requirements and properly prepared to carry hazardous cargoes.
Technical Specifications:
| Tank | uniform cross-section cylinder |
| Geometrical capacity, m3, approx. | 6 |
| Dischargeable capacity (K=0,95), m3 | 5,7 |
| Effective pressure, MPa no greater than | 1,6 |
| Estimated temperature of vessel wall, ̊ C | 50 |
| Operation temperature, ̊ C | from -40 to + 40 °С |
| Climate version of model | U |
| Gross weight of semitrailer tank, kg | 15350 |
| Overall dimensions, m, no greater than | 8,6 х 2,5 х 3,4 |
| Safety valve | - |
| Chassis | КАМАZ-43114
|
| Wheel formula | 6х4 |
| Engine power | 240 h.p. |
