ACT-10

ACT-10
Call to order

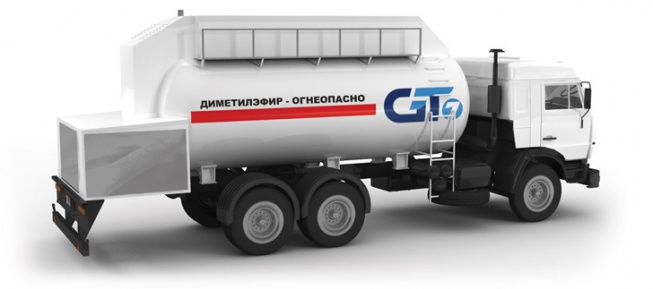

In 2004 a tanker truck was engineered and manufactured and is successfully operated by State-owned Unitary Enterprise MOSAVTOKHOLOD as refueling station for pilot lot of refrigerator vehicles BYCHOK which use DE as engine fuel. They are operated within Moscow city task program for introduction of alternative types of motor fuel.

Technical Specifications:

Working fluid Dimethyl Ether
Geometrical capacity, m3 10
Dischargeable capacity (K=0,70), m3 7
Effective pressure of bodywork, MPa 1,6
Effective pressure of insulation space, MPa 0
Operation temperature, ̊ C from -40 to + 40 °С
Weight of double-wall vessel with thermal insulation, kg, no greater than 8700
Weight of thermal insulation, kg 250
Number of cylinders for Compressed Natural Gas (CNG) 15
Maximum operation pressure in CNG cylinders, MPa 20
CNG cylinder capacity (for water), liters 50
Weight of CNG cylinder, kg 63
Tanker curb weight, kg, n/e 16135
Dischargeable LPG weight (for Butane), kg 4880
Tanker gross weight, kg
20870
Gross weight distribution on axles, kg

Front axle
4990
Rear axle (platform)
15880
Chassis
КАМАZ 65115
Overall dimensions, m, no greater than

Length
9
Width
2,5
Height
3,5
