PPCTA-36

PPCTA-36
Call to order

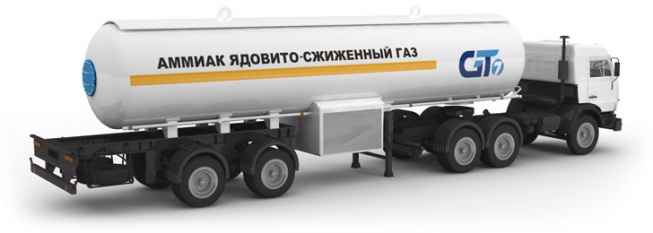

Semitrailer tank PPCTA-36 is designed for carrying, storage and refilling of stationary tanks with technical liquefied ammonia as per GOST 6221-90.

Designed for exploitation under moderate climate conditions at temperature range from -40̊ C to +45̊ C per classification of GOST 15150-69. PPCTA-36 is a U climatic version model, category I. To be used on hard surface roads only.

Technical Specifications:

Working fluid
Liquefied ammonia per GOST 6221-90
Geometrical capacity, m3 35,3
Dischargeable capacity (K=0,73), m3 25,7
Effective pressure, MPa 1,6
Estimated pressure, MPa2,03
Test pressure, MPa
2,6
Operation temperature, ̊ C from - 40 to +45
Curb weight of semitrailer tank, kg, n/e
13040
Weight of dischargeable liquefied ammonia, kg, n/e
17130
Gross weight of semitrailer tank, kg
30270
Load on fifth wheel, kg, n/e
11130
Load on road through semitrailer platform, kg, n/e
19140
Overall dimensions, mm, no greater than
11700х2500х3500
Height of fifth wheel, mm
1310
Vessel lifetime, yrs, no less than
15
