PPCTA-31

PPCTA-31
Call to order

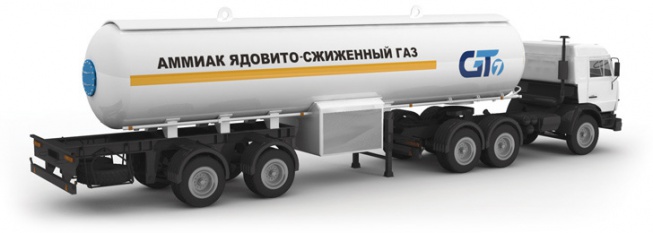

Semitrailer tank PPCTA-31 is designed for carrying, storage and refilling of stationary tanks with technical liquefied ammonia as per GOST 6221-90.

Designed for exploitation under moderate climate conditions at temperature range from -40̊ C to +45̊ C per classification of GOST 15150-69. PPCTA-31 is a U climatic version model, category I. To be used on hard surface roads only.

Technical Specifications:

Working fluid
Liquefied ammonia per GOST 6221-90
Geometrical capacity, m3 31,9 +/- 0,48
Dischargeable capacity (K=0,73), m3 23,3 +/- 0,48
Effective pressure, MPa 1,6
Estimated pressure, MPa2,03
Test pressure, MPa
2,6
Operation temperature, ̊ C from - 40 to +45
Number of breakwalls, pc
7
Curb weight of semitrailer tank, kg, n/e
10805
Weight of dischargeable liquefied ammonia, kg, n/e
15500
Gross weight of semitrailer tank, kg
26305
Load on fifth wheel, kg, n/e
10242
Load on road through semitrailer platform, kg, n/e
16063
Load on supporting legs, kg, n/e
16387
Allowed angle of transversal stability
25°
Specified tractor
MAZ-64229 (KAMAZ 54112)
Overall dimensions, mm, no greater than
11600х2500х3500
Load on fifth wheel, kg
11382
Height of fifth wheel, mm
1250
Vessel lifetime, yrs, no less than
15
