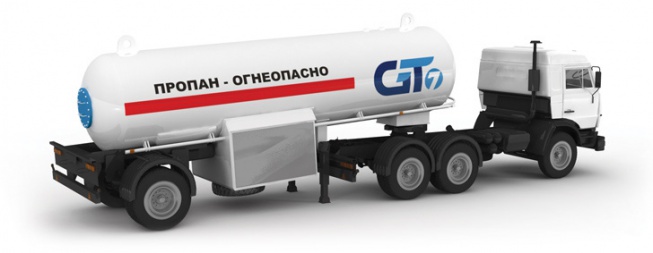

PPCT-12-885M
Semitrailer tank designed for carrying, short-time storage and further refilling of storage capacities with LPG according to GOST 20448-90 and GOST 27578-87 (propane, butane and their blends). Semitrailer tank is mounted on a double-axle platform and fully meets ADR requirements.
Semitrailer tank in its basic package is equipped with pump, counter, bottom valves, LPG discharge hoses, electronic level gauge, shut-off and safety relief valves.
Actions performed:
-Filling of the tank with own pump;
-Pump-over from the tank to another vessel;
-Filling by gravity bypassing the counter;
-Discharging by pump bypassing the counter;
-Discharging by pump through the counter;
-Vehicle refueling through the counter (to another semitrailer tank).
Semitrailer tank in its basic package is equipped with pump, counter, bottom valves, LPG discharge hoses, electronic level gauge, shut-off and safety relief valves.
Actions performed:
-Filling of the tank with own pump;
-Pump-over from the tank to another vessel;
-Filling by gravity bypassing the counter;
-Discharging by pump bypassing the counter;
-Discharging by pump through the counter;
-Vehicle refueling through the counter (to another semitrailer tank).
Technical Specifications:
| Geometrical capacity of bodywork, m³ | 13,17 |
| Dischargeable capacity (K=0,85), m³ | 11,2 |
| Weight of LPG carried, kg, n/e | 6430 |
| Curb weight of semitrailer tank, kg, n/e | 5700 |
| Operation pressure, Mpa
| 1,6
|
| Operation temperature, ˚C | - 40...+ 45
|
| Load on fifth wheel of the truck, kg, n/e | 4610 |
| Load on road through semitrailer platform, kg, n/e | 7520 |
| Load on support elements, kg, n/e | 7740
|
| Gross weight of semitrailer tank (without truck), kg | 12130 |
| Overall dimensions without truck, m | 7,7 х 2,45 х 3,15 |
