PPCT-50

PPCT-50
Call to order

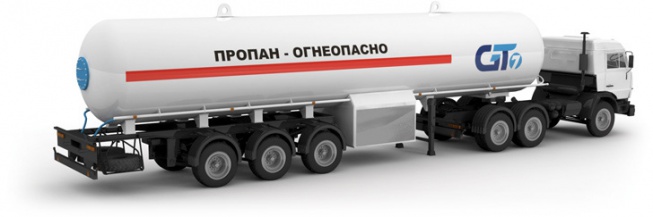

Semitrailer tank designed for carrying, short-time storage and further refilling of storage capacities with LPG according to GOST 20448-90 and GOST 27578-87 (propane, butane and their blends). Semitrailer tank is mounted on a double-axle platform and fully meets ADR requirements.

Semitrailer tank in its basic package is equipped with pump, counter, bottom valves, LPG discharge hoses, electronic level gauge, shut-off and safety relief valves.
Actions performed:
-Filling of the tank with own pump;
-Pump-over from the tank to another vessel;
-Filling by gravity bypassing the counter;
-Discharging by pump bypassing the counter;
-Discharging by pump through the counter;
-Vehicle refueling through the counter (to another semitrailer tank).

Technical Specifications:

Operational fluid
liquefied gases: propane, butane as per GOST20448-90, GOST27578-87
Geometrical capacity, m³ 49,8
Dischargeable capacity (K=0,85), m³ 42,3
Effective pressure, MPa 1,6
Operation temperature, ˚C - 40...+ 45
Weight of LPG carried, kg, n/e 24300
Curb weight of the semitrailer tank, kg, no greater than
12550
Gross weight of semitrailer tank, kg36850
Overall dimensions without truck, mm14000х2500х3540
Load on fifth wheel of the truck, kg, n/e11000
Load on road through semitrailer platform, kg, n/e25850
Load on support elements, kg, n/e15740
