PPCT-45

PPCT-45
Call to order

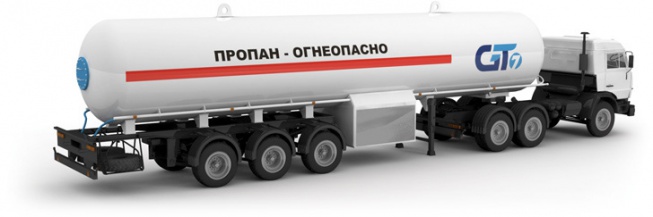

Semitrailer tank designed for carrying, short-time storage and further refilling of storage capacities with LPG according to GOST 20448-90 and GOST 27578-87 (propane, butane and their blends). Semitrailer tank is mounted on a double-axle platform and fully meets ADR requirements.

Semitrailer tank in its basic package is equipped with pump, counter, bottom valves, LPG discharge hoses, electronic level gauge, shut-off and safety relief valves.
Actions performed:
-Filling of the tank with own pump;
-Pump-over from the tank to another vessel;
-Filling by gravity bypassing the counter;
-Discharging by pump bypassing the counter;
-Discharging by pump through the counter;
-Vehicle refueling through the counter (to another semitrailer tank).

Technical Specifications:

Geometrical capacity, m³ 45,5
Dischargeable capacity (K=0,85), m³ 38,7
Effective pressure, MPa 1,6
Operation temperature, ˚C - 40...+ 45
Weight of LPG carried, kg, n/e 21000
Load on road through semitrailer platform, kg, n/e24000
Load on fifth wheel of the truck, kg, n/e 10500
Load on support elements, kg, n/e15740
Gross weight of semitrailer tank, kg 34500
Overall dimensions without truck, m 12,68 х 2,5 х 3,54
