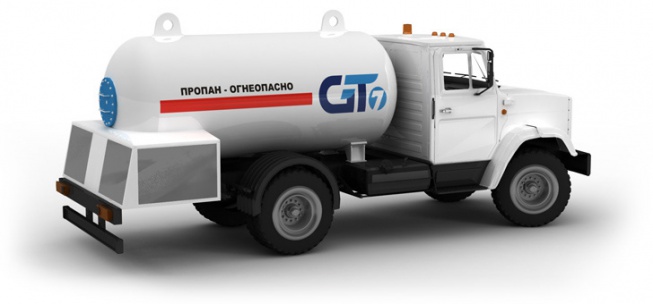

ACT-8MU (capacity is 9.2 m3)
Designed for carrying, short-term storage and re-filling of stationary storage reservoirs, both ground-based and underground, gas vehicles and gas cylinders for household use on specially arranged open facilities.
Tanker vehicle is equipped with pump driven via power takeoff box, LPG level measurement device, mass flowmeter, safety relief valves and shut-off valves and fittings, control and measuring instruments.
Specified basic chassis for ACT-8MU are ZIL 433362, ZIL 432932 (with Diesel engine) or AMUR 531350. It is also possible to use an imported vehicle with corresponding characteristics.
Tanker vehicle is equipped with pump driven via power takeoff box, LPG level measurement device, mass flowmeter, safety relief valves and shut-off valves and fittings, control and measuring instruments.
Specified basic chassis for ACT-8MU are ZIL 433362, ZIL 432932 (with Diesel engine) or AMUR 531350. It is also possible to use an imported vehicle with corresponding characteristics.
Technical Specifications:
| Geometrical capacity, m³ | 9,2 |
| Dischargeable capacity, m³ | 7,82 |
| Weight of transported LPG, kg | 3610 |
| LPG pressure, MPa | 1,6 |
| Test pressure, MPa | 1,8 |
| Temperature, ̊ C | from -40 to + 40 °С |
| Chassis | KAMAZ 43253 |
| Tanker curb weight, kg | 9540 |
| Total weight of tanker, kg | 13150 |
| The distribution of the total weight of the axes
front axle rear axle |
4555 8595 |
| Overall dimensions, mm | 7485 х 2500 х 2970 |
