PPC-42

PPC-42
Call to order

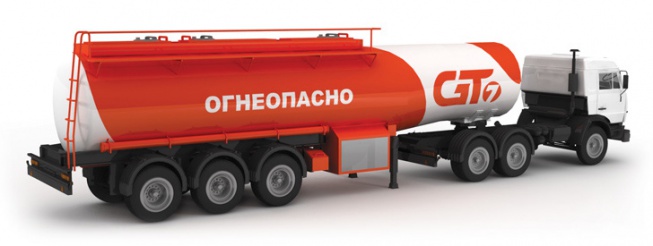

Semi-trailer tank is designed for carrying and short-term storage of all types of refined oil products with mass density n/e 820 kg/m³ and further re-filling of stationary storage reservoirs. It has a load-carrying vessel on the platform of three-axle trailer with pneumatic suspension and fully meets the requirements of ADR.

The vessel represents a horizontal cylinder tank of variable cross-section. Filling performed via top filler neck by an outside pump. Discharging effected by gravity, separately from each section. Discharge pump installation optional. Basic package for semi-trailer tank includes bottom dump valves, ball valves, make-and-break couplings, hatch covers with breather valves and two 4,5 m long hoses diam.80.

Technical Specifications:

Geometrical capacity, m³ 42
Dischargeable capacity, m³ -
Operation temperature, ̊ С from -40 to + 40 °С
Number of compartments 3
Gross weight, kg 9910
Maximum carried load weight, kg 32550
Total weight, kg 42460
Load on the fifth wheel, kg 15460
Load on the road via platform, kg 27000
Fifth wheel basic height, mm 1220
Dimensions, mm, n/e
Length, mm 12255
Width, mm 2500
Height, mm 3815
