PPC-30

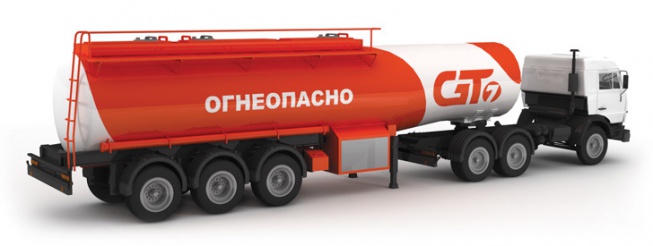

Semi-trailer tank is designed for carrying and short-term storage of all types of refined oil products with mass density n/e 820 kg/m³ and further re-filling of stationary storage reservoirs. It has a load-carrying vessel on the platform of biaxle trailer with pneumatic suspension and fully meets the requirements of ADR.
The vessel represents a horizontal cylinder tank. Filling performed via top filler neck by an outside pump.
Discharging effected by gravity, separately from each section. Discharge pump installation optional. Basic package for semi-trailer tank includes bottom dump valves, ball valves, make-and-break couplings, hatch covers with breather valves and two 4,5 m long hoses diam.80.
Equipment:
The vessel represents a horizontal cylinder tank. Filling performed via top filler neck by an outside pump.
Discharging effected by gravity, separately from each section. Discharge pump installation optional. Basic package for semi-trailer tank includes bottom dump valves, ball valves, make-and-break couplings, hatch covers with breather valves and two 4,5 m long hoses diam.80.
Equipment:
- Tonar axles (optional BPW);
- Riser cover with breathers;
- Landing gear MODUL B 04;
- Bottom valve pneumatic control unit;
- Plastic fenders;
- Manually controlled bottom valves;
- Connection unit with ball valves DN-80;
- Plastic cases for hoses;
- Fire extinguisher with bracket;
- Plastic case for fire extinguisher;
- Ramp, environmental case, ladder, sand box, felt box, electrical equipment 24 V;
- Aluminum bumper;
- Underride protection;
- Electrical connectors for trucks;
- LED marker lights.
| Geometrical capacity, m³ | 30 |
| Dischargeable capacity (K=0,82), m³ | 28,5 |
| Operation temperature, ̊ С | from -40 to + 40 °С |
| Number of compartments | 3 |
| Gross weight, kg | 8150 |
| Maximum carried load weight, kg | 24500 |
| Total weight, kg | 32650 |
| Load on the fifth wheel, kg | 11500 |
| Load on the road via platform, kg | 21150 |
| Fifth wheel basic height, mm | 1220 |
| Dimensions, mm, n/e |
|
| Length, mm | 11200 |
| Width, mm | 2500 |
| Height, mm | 3500 |
