PPC-22

PPC-22
Call to order

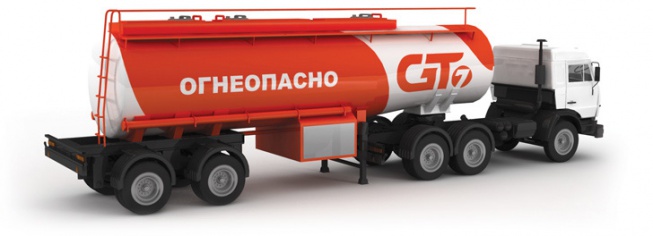

Semi-trailer tank is designed for carrying and short-term storage of all types of refined oil products with mass density n/e 820 kg/m³ and further re-filling of stationary storage reservoirs. It has a load-carrying vessel on the platform of biaxle trailer with pneumatic suspension and fully meets the requirements of ADR.

The vessel represents a horizontal cylinder tank. Filling performed via top filler neck by an outside pump.

Discharging effected by gravity, separately from each section. Discharge pump installation optional. Basic package for semi-trailer tank includes bottom dump valves, ball valves, make-and-break couplings, hatch covers with breather valves and two 4,5 m long hoses diam.80.

Equipment:
  • Tonar axles (optional BPW);
  • Riser cover with breathers;
  • Landing gear MODUL B 04;
  • Bottom valve pneumatic control unit;
  • Plastic fenders;
  • Manually controlled bottom valves;
  • Connection unit with ball valves DN-80;
  • Plastic cases for hoses;
  • Fire extinguisher with bracket;
  • Plastic case for fire extinguisher;
  • Ramp, environmental case, ladder, sand box, felt box, electrical equipment 24 V;
  • Aluminum bumper;
  • Underride protection;
  • Electrical connectors for trucks;
  • LED marker lights.
Technical Specifications:

Geometrical capacity, m³ 22
Dischargeable capacity (K=0,82), m³ 22
Operation temperature, ̊ С from -40 to + 45 °С
Number of compartments 2-3
Gross weight, kg 6500
Maximum carried load weight, kg 18920
Total weight, kg 25420
Load on the fifth wheel, kg 11470
Load on the road via platform, kg 13950
Fifth wheel basic height, mm 1220
Dimensions, mm, n/e
Length, mm 9665
Width, mm 2500
Height, mm 3620
